SurgeX Standalone Battery Backup - UPS-1000-OL

Product Details

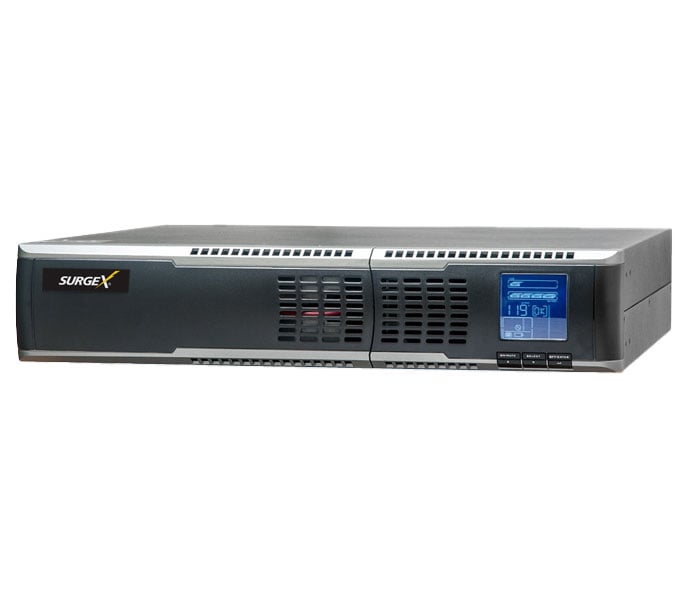

SurgeX Standalone Battery Backup - UPS-1000-OL
SurgeX Standalone UPS solutions deliver clean continuous power, via online double conversion technology, to ensure the safe shutdown of equipment in the event of an outage. All incoming power is converted from AC to DC and then back to AC. If the main power is interrupted, the batteries are still holding up the incoming DC supply to the inverter, so the load continues to be supplied with absolutely no interruption whatsoever. The zero transfer time guarantees mission critical equipment remains up and running.
The Standalone solutions are available in 1000, 2000, and 3000 VA configurations with hot swappable internal batteries to ensure maintenance can be performed without powering down connected equipment. All three solutions have extended scalable runtimes of up to 8 hours via self-charging extended battery packs.
Experience a seamless transition during short-term outages and easily convert to a backup supply with SurgeX Standalone solutions.
Features
Online double conversion technology
True sinewave output
Controllable receptacles
Hot swappable battery
Configurable as tower or 19” rack
Intuitive LCD screen
Optional SNMP card to monitor and manage the UPS via the network
Specifications
Load Rating: 8.3A
Voltage Rating: 120V
Power Requirement (no load): 0
Under-Voltage Auto Shutdown: Yes
Over-Voltage Auto Shutdown: Yes
Over-Current Auto Shutdown: Circuit Breaker
Over-Temperature Auto Shutdown: Internal temperature fault shutdown
Network Port: Optional SNMP Card
Serial Port
RS-232 on Female 9-Pin D-subminiature
USB Type B
RJ45 on optional SNMP card
Temperature Sensor Input: None
Auxiliary Relay Outputs: With optional relay card
Temperature Range: 0C to 40C
Humidity Range: <90% Non-condensing
Agency Listings
UL 1778
CSA*C22.2 No. 107
* 1.2 x 50 microsecond industry standard combination wave surge as per IEEE C62.41 ** Specifications subject to change without notice
Read More
California customers
Proposition 65 WARNING
WARNING: Cancer and Reproductive Harm

Specifications
General
Color
Black
Number of Outlets
6
USB Ports
Yes
Voltage Protection Rating
120V
Under-Voltage Shutoff
Yes
Over-Voltage Shutoff
Yes
Warranty Information
Parts Warranty
2 Years Limited
Labor Warranty
2 Years Limited
Approximate Weight
Unit Weight (lbs.)
37
Package Weight (lbs)
39
Approximate Dimensions
Height (in)
3.39
Width (in)
17.24
Depth (in)
16.26
Package Size HxWxL (in)
10 x 20 x 24
