Sonance White Slider Impedance - VC60SIMDW (92161)

Product Details

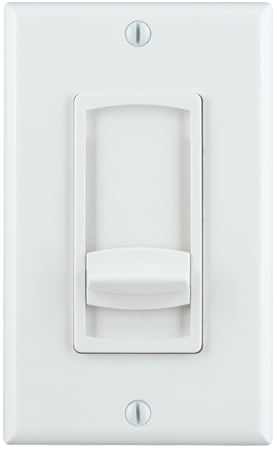

Sonance VC60SIM White Slider Impedance - VC60SIMDW
Impedance multiplying stereo volume control. Allows usage of multiple pairs of speakers with amplifier. Adjustable impedance jumpers allow as many as eight pairs of 8-ohm speakers to be driven by a single 8-ohm capable amplifier.
Specifications
Certification: CE listed
Features
Features 12 control positions, soft-touch action and silent switching capability.
Handles high-current signal from amplifiers up to 60watts RMS/channel.
Speaker Impedance: 8 ohms
Amplifier Impedance: 8 ohms (X1 setting); 16 ohms (X2 setting); 32 ohms (X4 setting); 64 ohms (X8 setting)
Connections: Removable 4-pin screw connectors simplify speaker and amplifier wiring (14 AWG wire capacity)
Frequency Response: 20Hz - 20kHz ±1db
Power Rating: 60 watts RMS maximum input/channel
Finish: Available in Ivory rotary Decora® and standard wallplate or almond.
Approximate Weight
Shipping: 2 lbs
Features and specifications are subject to change without notice.
Read More
California customers
Proposition 65 WARNING
WARNING: Cancer and Reproductive Harm

Specifications
General
Color
White
Power Handling Per Channel (W)
60W
Impedance Magnification
8x
Maximum Attenuation (dB)
-42
UL Listed
No
Weather Resistant
No
Warranty Information
Labor Warranty
2 Years Limited
Parts Warranty
2 Years Limited
Approximate Weight
Package Weight (lbs)
2
Approximate Dimensions
Package Size HxWxL (in)
12 x 12 x 24
