MantelMount MAX1 Full-Range Motion TV Mount for 50-86-Inch TVs - MAX1

Product Details

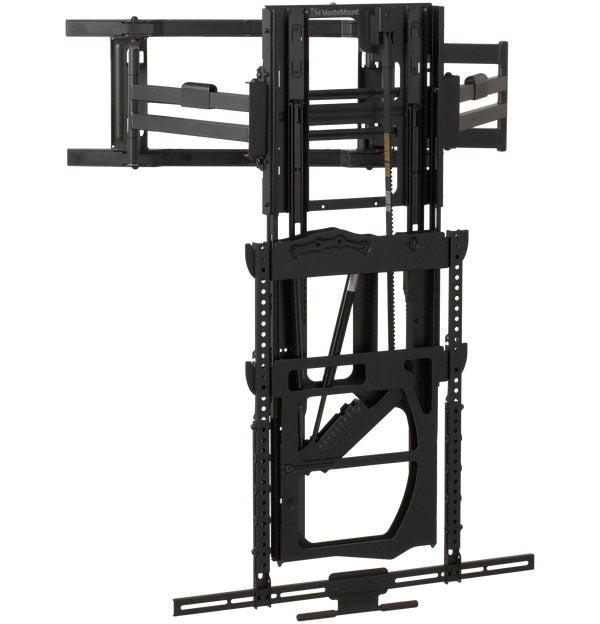

MantelMount MAX1 Full-Range Motion TV Mount for 50-86-Inch TVs
The revolutionary MAX1 offers unmatched positioning
flexability and max load capacity up to 90 lbs.
Ofer your customers all the benefts of a traditional full-motion mount
combined with up to 29” of independent vertical travel! The MAX1 ofers
our closest fush to wall distance in a non-recessed application that
can position the back of the TV just 3” of the wall. MAX1’s clearance
requirements are simplifed when mounting a TV above obstructions
such as a freplace mantel.
This innovation creates a new standard in the full range motion mount
category, ensuring your TV is always at the perfect eye level and viewing
angle. Plus with its ability to handle up to 90 lbs., the MantelMount MAX1
ofers robust support for TV’s up to 86”.
Features
Innovative Movement Ability
Wall Slider
Efortlessly drop your TV vertically without any horizontal travel for
precise eye-level viewing.

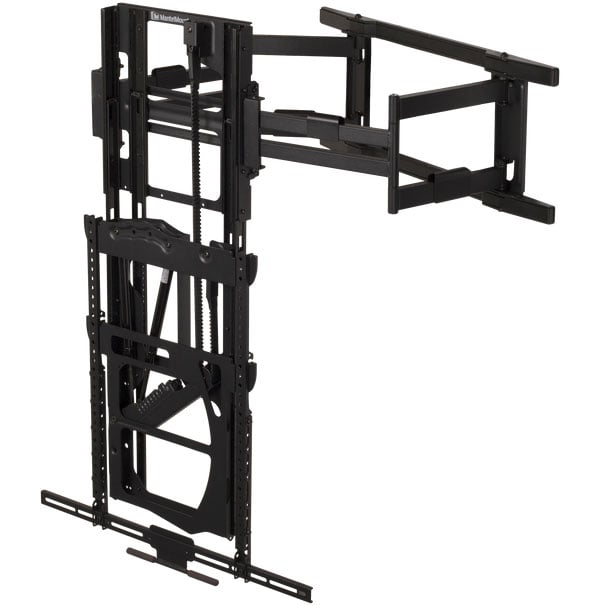

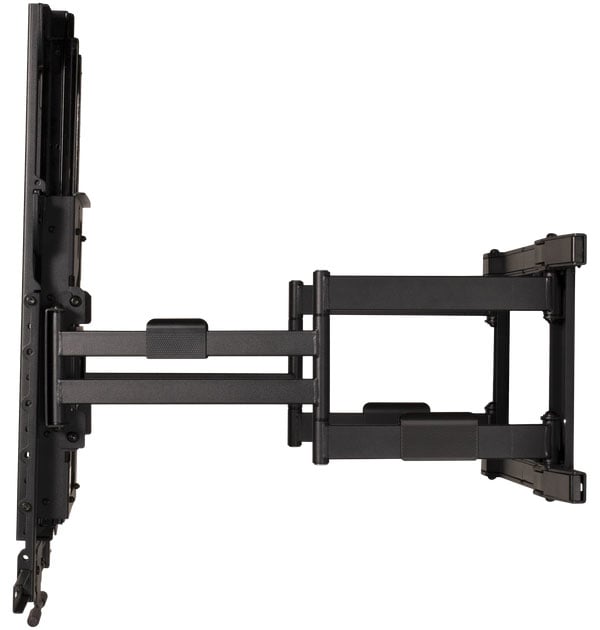

Independent 22” extension
MAX1 can extend up to 22” and swivel
left or right up to 40°, independent of vertical position.
Up to 29” of vertical travel
Independently lower the TV using a
conveniently located handle.
Constant Tension Design
Provides absolute stop-anywhere positioning.
Superior Stability and Design
Rock-solid stability
MAX1 combines 3mm commercial-grade steel with a
constant tension design, holding TV’s securely in any position and eliminating
the need for mechanical stops.
Slim and Sleek
Despite its robust capabilities, the MAX1’s slim profle allows TV’s
as close as 3” to the wall, rivaling the sleekness of traditional articulating mounts
in non-recessed applications.
Simplifes Clearance Requirements
Minimal Clearance
When mounting above obstructions, such as a freplace mantel,
MAX2 allows for clearances as close as 2” from bottom of the TV (or soundbar).
Enhanced User Experience
Fits in Tight Spaces
MAX1’s unique abilities make it perfect for set-and-forget
positioning applications in compact spaces and unique AV setups in confned areas.
Integrated Features
Comes with high temperature indicators, soundbar
mounting brace, and cable routing clips for a clean organized look.
Expanding into Other Vertical Markets
Education, Digital Signage,
Conference Rooms, Hospitality and more. MAX1’s its unique positioning abilities
and user-friendly operation, excels beyond the traditional consumer AV market.
Read More
California customers
Proposition 65 WARNING
WARNING: Cancer and Reproductive Harm

Specifications
General
Color
Black
Type
Full Motion
Maximum TV Size Compatibility (in)
86
Minimum TV Size Compatibility (in)
50
Assembly Required
Yes
Compatibility
50" - 86" Displays
Outdoor
No
Maximum Extension (in)
22
Maximum TV Weight (lbs.)
90
Mounting Pattern
Up to 600 x 600
Lateral Adjustment
29" Vertical Drop
Swivel Adjustment (Degrees)
40
Warranty Information
Labor Warranty
Limited Lifetime
Parts Warranty
Limited Lifetime
Approximate Weight
Unit Weight (lbs.)
65
Package Weight (lbs)
70
Approximate Dimensions
Package Size HxWxL (in)
45 x 6 x 20
