StarTech 25Ft. Coax High Resolution Monitor VGA Cable - MXT101MMHQ25

Product Details

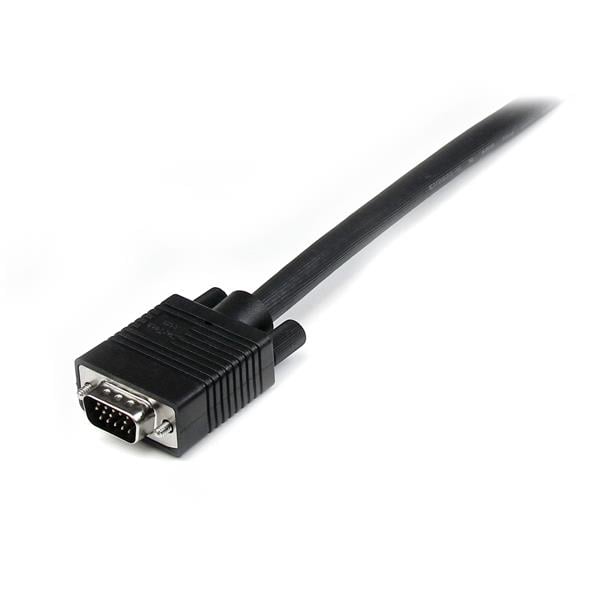

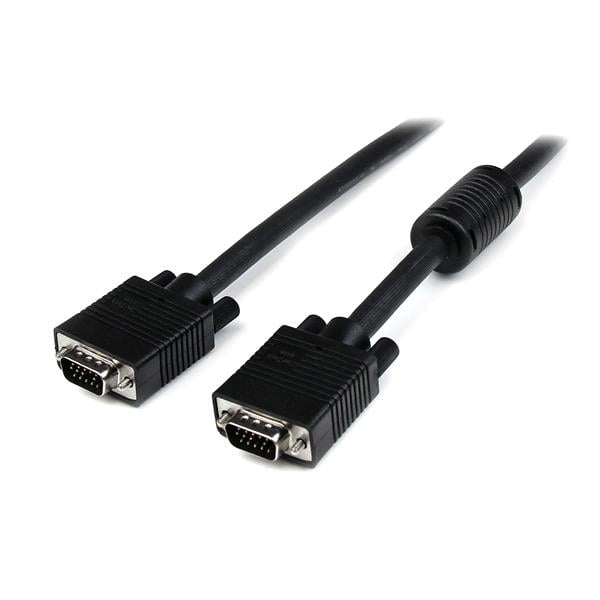

StarTech 25Ft. Coax High Resolution Monitor VGA Cable, Model MXT101MMHQ25
The MXT101MMHQ25 High Resolution VGA Cable (25ft) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
Features
Extends your VGA signal to work with your monitor, splitters, and projectors
Supports high resolution VGA video (1920x1200 or above), suitable for a wide range of applications

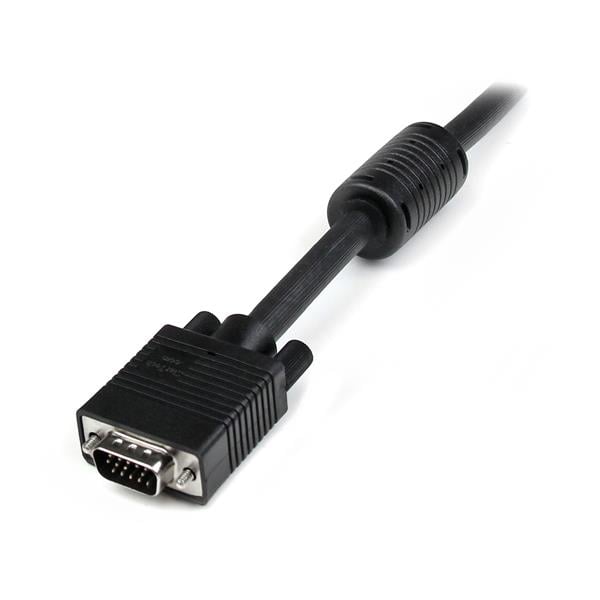

Ferrite cores help eliminate EMI interference
Triple-coaxial + twisted-pair wire for crystal clear display
Durably constructed cable, with high quality HD15 connectors
Impedance matched at 75 Ohms for full brightness and vibrant picture color from your VGA monitor

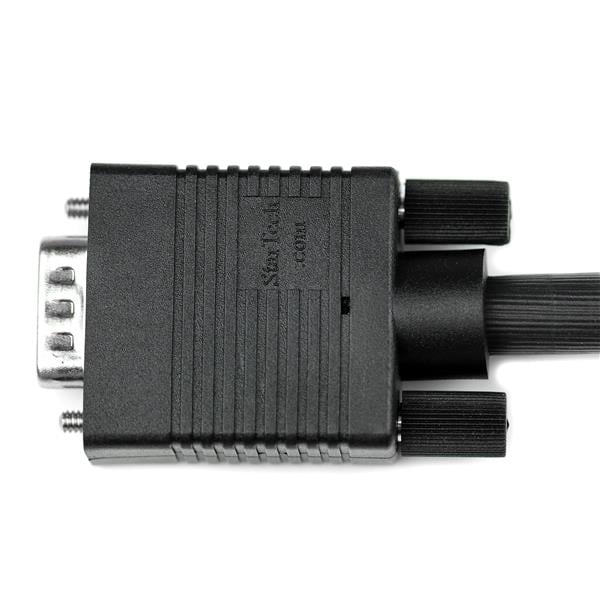

High quality VGA connectors with molded PVC strain relief
Specifications
Hardware
Cable Jacket Type: PVC - Polyvinyl Chloride
Cable Shield Type: Aluminum-Mylar Foil with Braid
Connector Plating: Nickel
Fire Rating: CMG Rated (General Purpose)
Number of Conductors: 14
Number of Ferrites: 1
Regulatory Approvals: UL2919
Performance
Impedance: 75 Ohm
Connector(s)

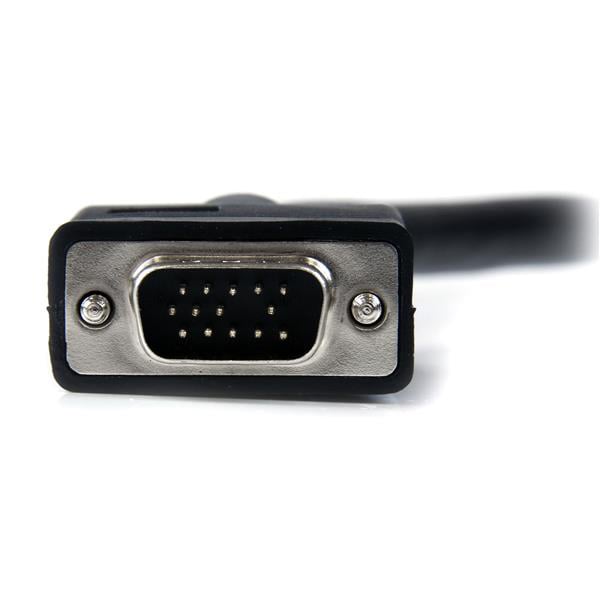

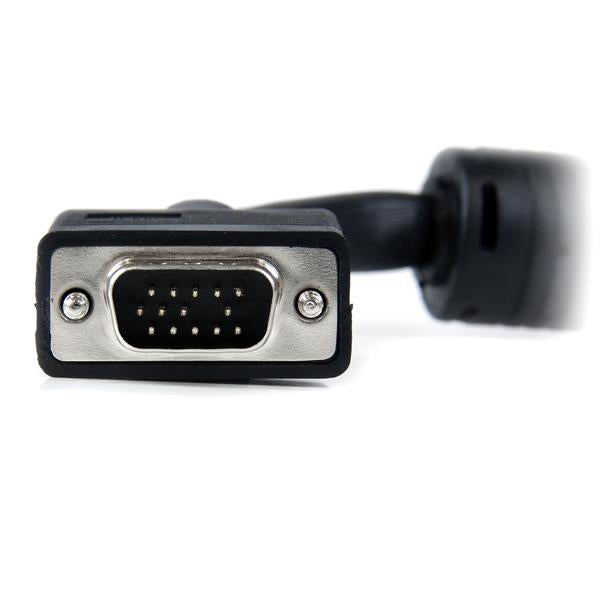

Connector A: 1 - VGA (15 pin; High Density D-Sub) Male
Connector B: 1 - VGA (15 pin; High Density D-Sub) Male
Physical Characteristics
Cable Length: 25 ft [7.6 m]
Cable OD: 0.4 in [9 mm]
Color: Black
Wire Gauge: 28 AWG
Environmental
Humidity: 0 - 80 %RH
Operating Temperature: 0 to 60 °C
Storage Temperature: -20 to 80 °C
In the Box
1 - 25 ft Coax High Resolution Monitor VGA Cable - HD15 M/M
2 - Nuts
Approximate Dimensions
Length: 25'
Max Connector Dimension: 1.3"
Approximate Weight
Shipping: 2 lbs
Warranty Information
Manufacturer Warranty (authorized online retailer): Limited Lifetime
