MantelMount Motorized Drop Down & Swivel TV Mount - MM860V2

Product Details
MantelMount MM860 Motorized Drop Down & Swivel TV Mount
*Must be installed by Abt locally only
The award-winning MantelMount presents a motorized mount for high on the wall installations such as over a fireplace. Offering comfortable eye-level viewing, the fully automated MM860 Pro Series TV Mount is second to none!
Key Features
Fully Motorized For Up/Down Travel & Swivel
Auto-Temperature Sensing & Retraction
Integrate With Control Systems Or Control With Included RF Remote
Limited Lifetime Warranty & 100% Guarantee
Features
Simultaneous Drop & Swivel

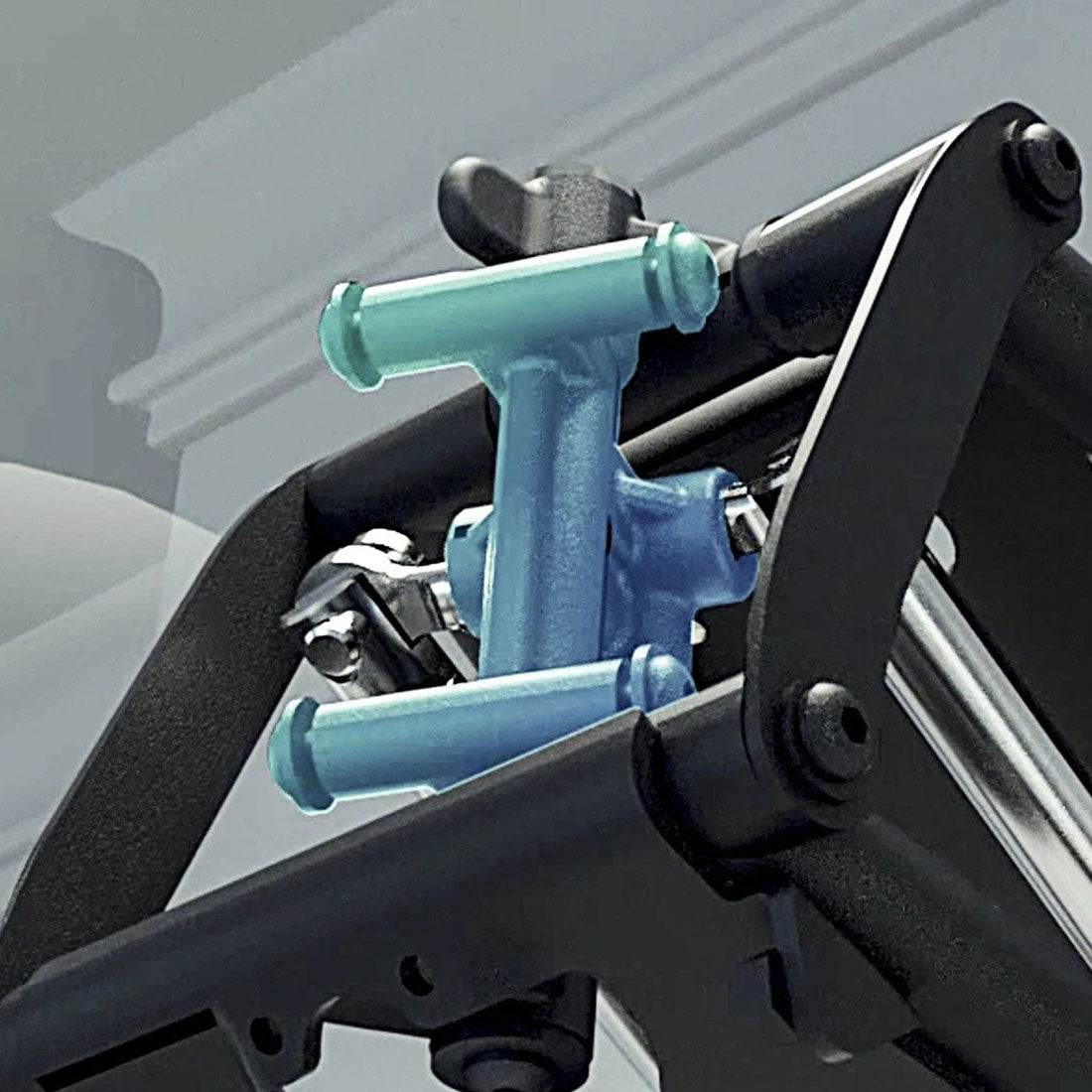

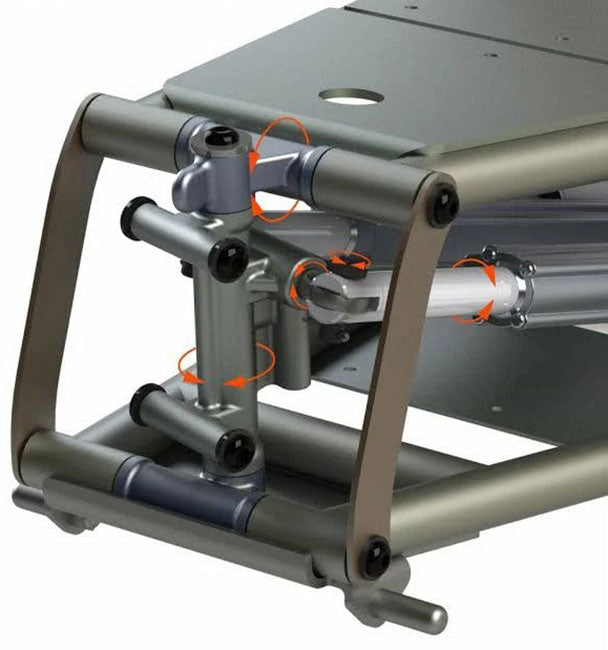

Patented Multi-Axis hub, proprietary software and precision electronic actuators lower and swivel the TV in one quick fluid motion.

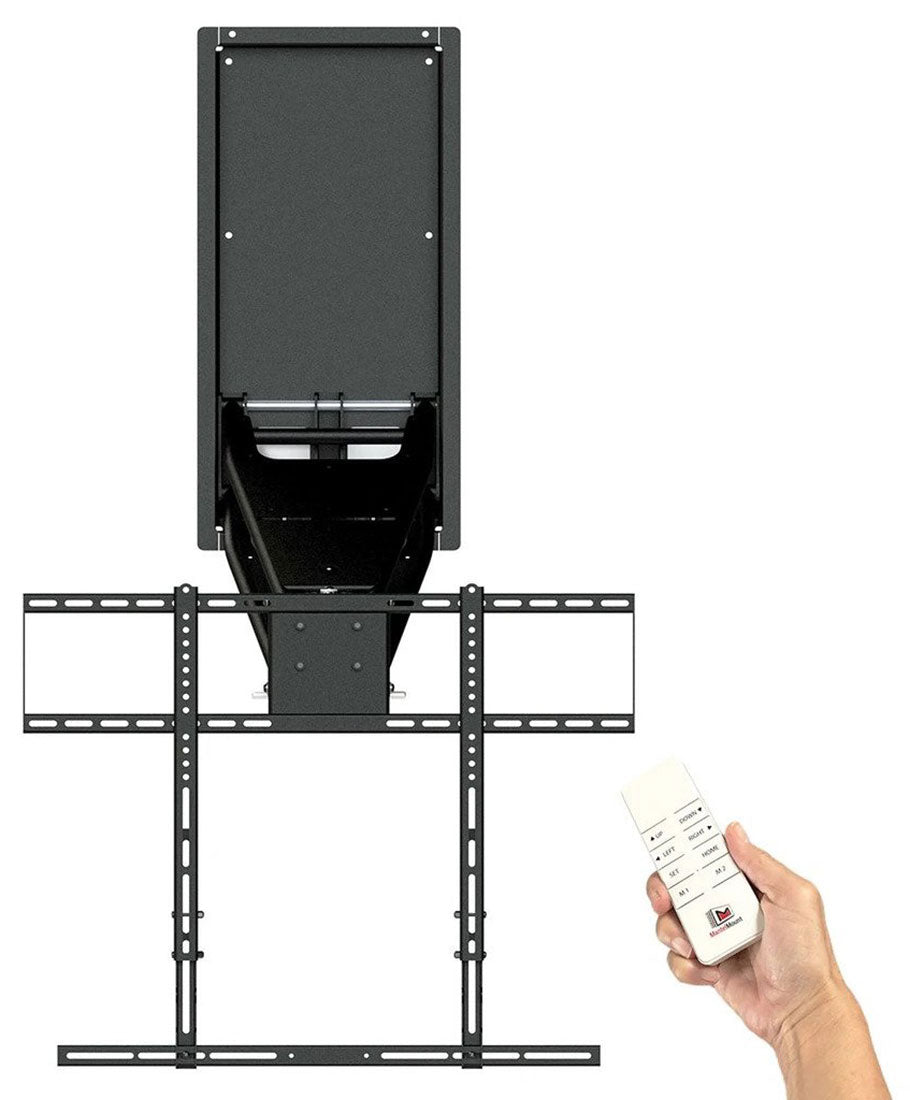

Remote Control Choices
Controlled through the included 433 MHZ RF remote, IR-based Logitech Harmony remotes and popular home automation systems.
Home Automation Options
Works with Control4, URC, RTI, Crestron, Savant and Logitech, with command sets for hard-coding additional systems.
Power Sensing Technology
Detects when the TV is turned on and automatically lowers it to a favorite preset. Provides automation even without a control system.

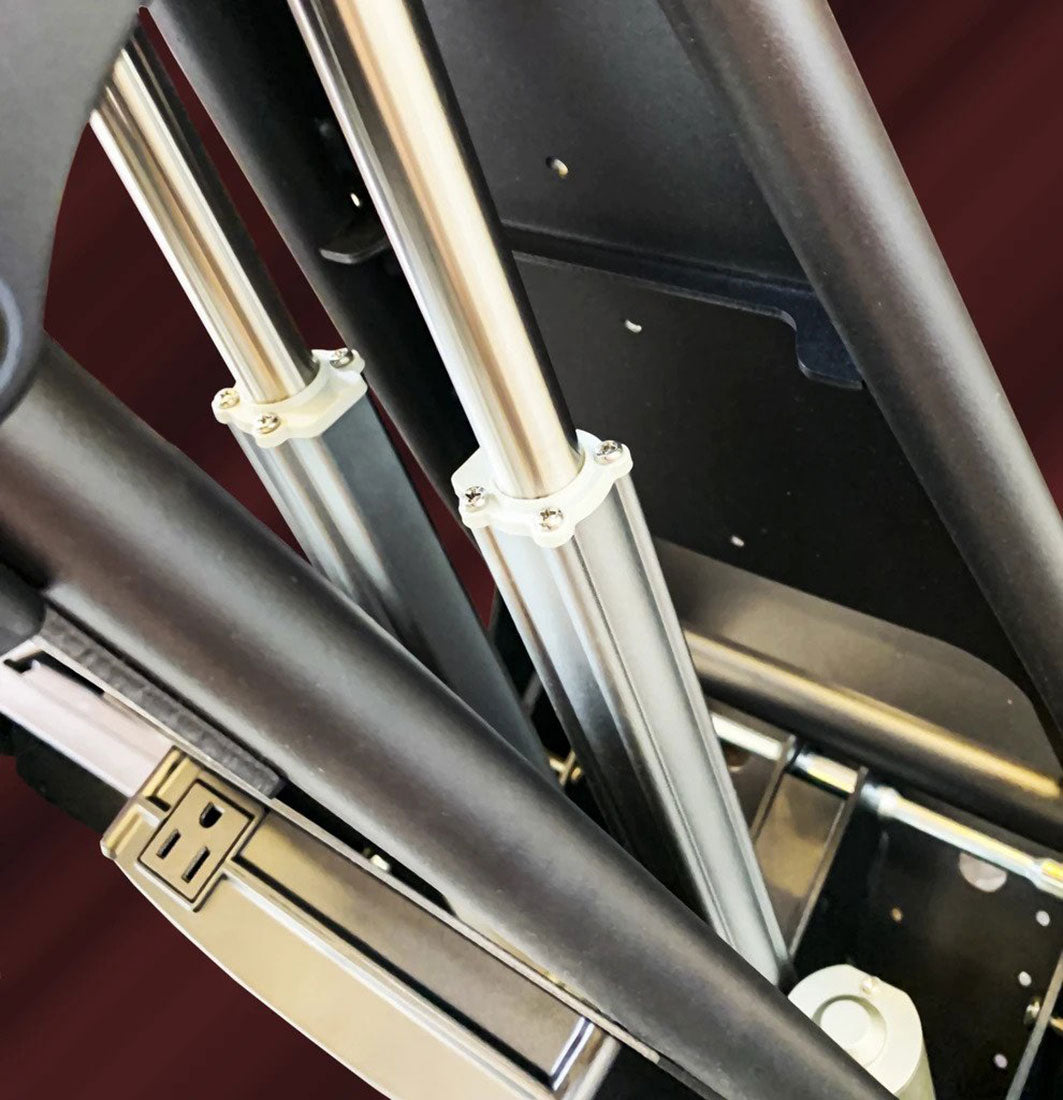

Silent Operation
Two custom electronic actuators allow for smooth, barely audible movement.

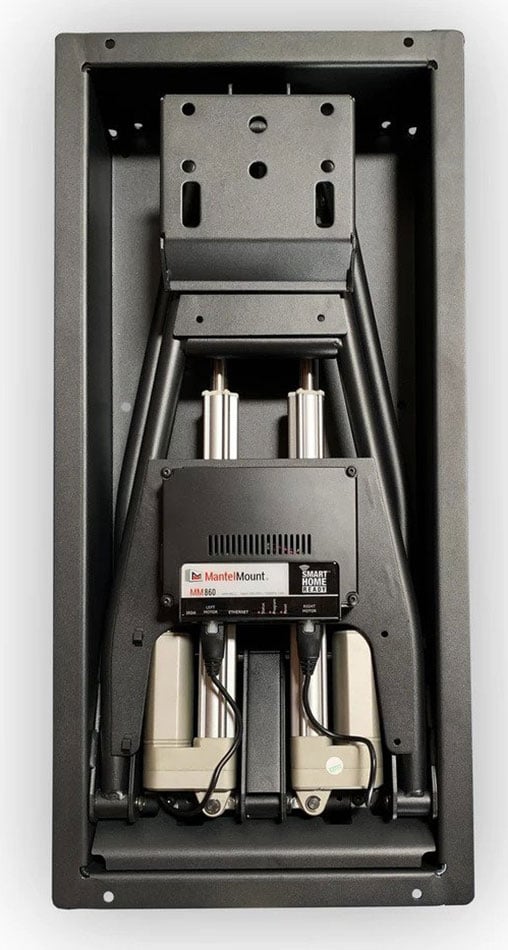

Recessible Housing
Conceals the lifting arm and electronics in the raised position. Can be recessed for flush-to-wall installations.
Temperature-sensing Monitor
TV automatically retracts to its home position when an unsafe temperature is detected.
Multiple Memory Presets
Easily program multiple preset positions for favorite viewing locations.
Power Loss Recovery
Keeps its last location in memory, eliminating the need for a reset after power interruption.
Soft & Hard Travel Stops
Vertical and horizontal travel limits configured through both software and hardware, provide a virtual safety shield that prevents the TV from touching the wall or mantel.
Plug & Play Networking
DHCP enabled right out of the box. Easily identifiable on the network.
On-board Web Server
For simple browser based configuration.
Online Software Updates
Download the latest software and firmware updates from the internet directly to the control module.
Communication Protocols
Can be managed with IP and RS232 protocol through Ethernet, dry contacts or a serial IRDA port.
Post-installation Leveling
Allows for screen position refinement after the mount is installed.
Horizontal Braces With Paintable Covers
Make retrofitted installations fast and easy, for both recessed or surface installations.

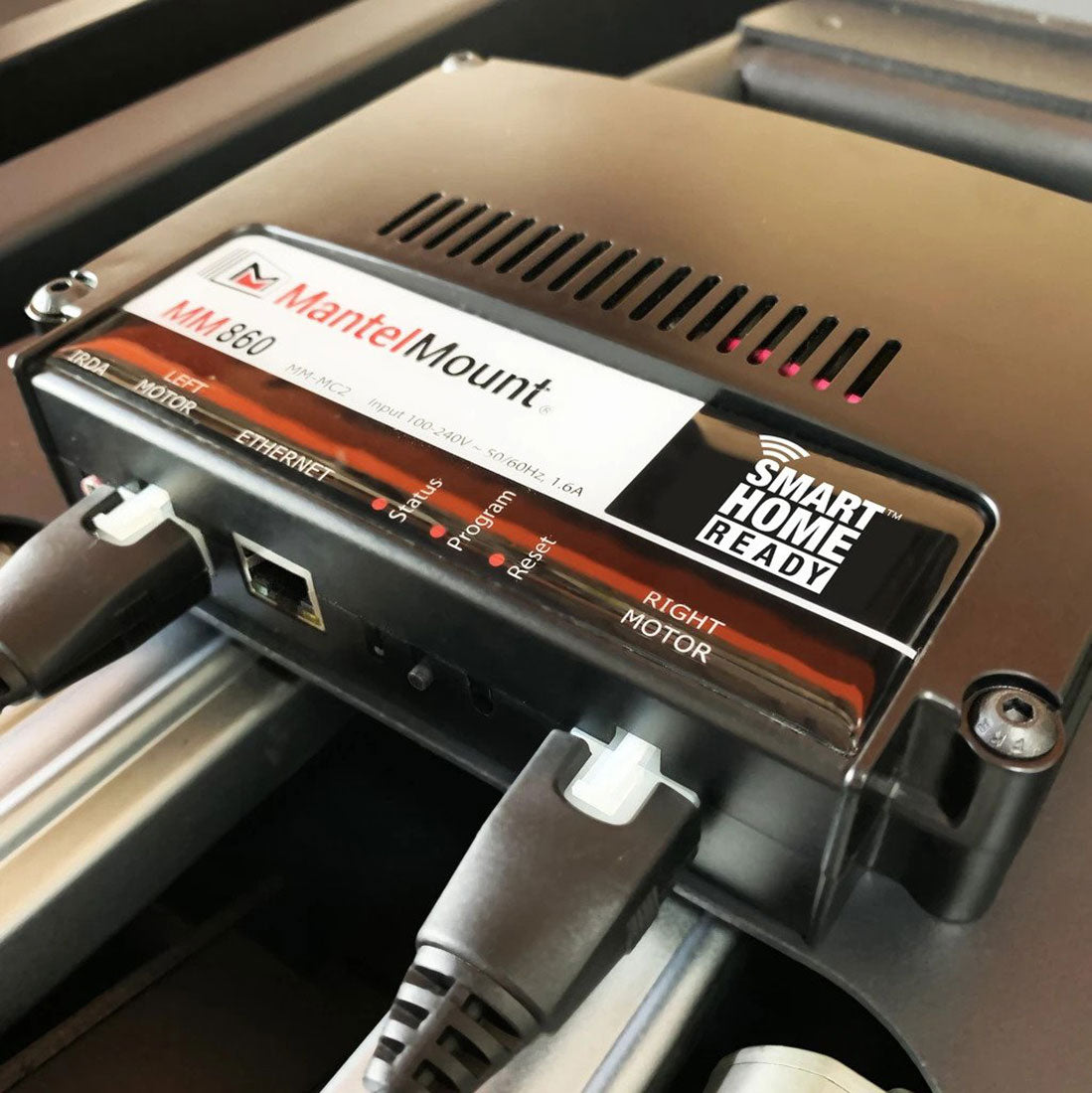

Easy To Service
The mount installs in one piece. Electronics are contained in a single lightweight module that’s easily shipped, removed and replaced.
Read More
California customers
Proposition 65 WARNING
WARNING: Cancer and Reproductive Harm

Specifications
General
Color
Black
Type
Pulldown
Maximum TV Size Compatibility (in)
100
Minimum TV Size Compatibility (in)
55
Assembly Required
Yes
Outdoor
No
In the Box
Horizontal Sound Bar Adapter, Color-changing Heat-Sensitve Handles
Maximum TV Weight (lbs.)
125
Mount Material
Heavy Duty Steel
Max Mounting Pattern
600x600
Product Finish
Black
Swivel Adjustment (Degrees)
25 degrees left/right
Warranty Information
Labor Warranty
Limited lifetime, 5 Years Gas Springs or Electronic Parts
Parts Warranty
Limited lifetime, 5 Years Gas Springs or Electronic Parts
Approximate Weight
Unit Weight (lbs.)
73
Package Weight (lbs)
130
Approximate Dimensions
Height (in)
31.5
Width (in)
35.4
Depth (in)
8.25
Package Size HxWxL (in)
7 x 17 x 39
