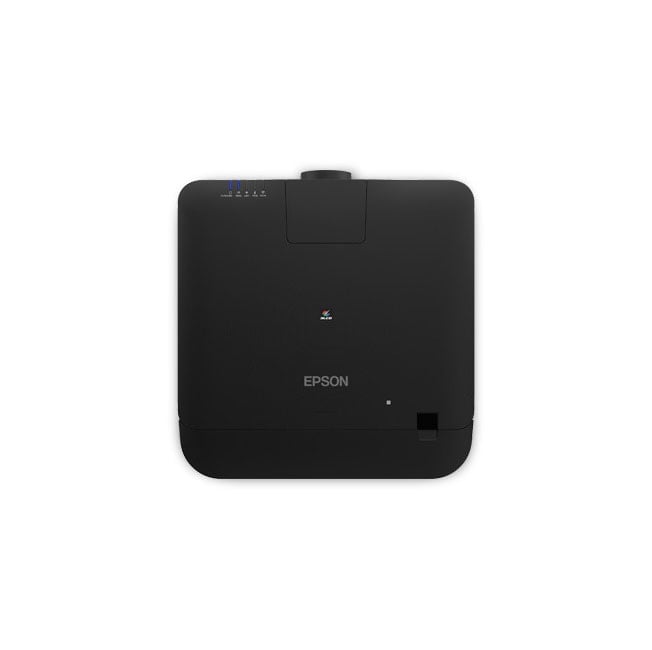

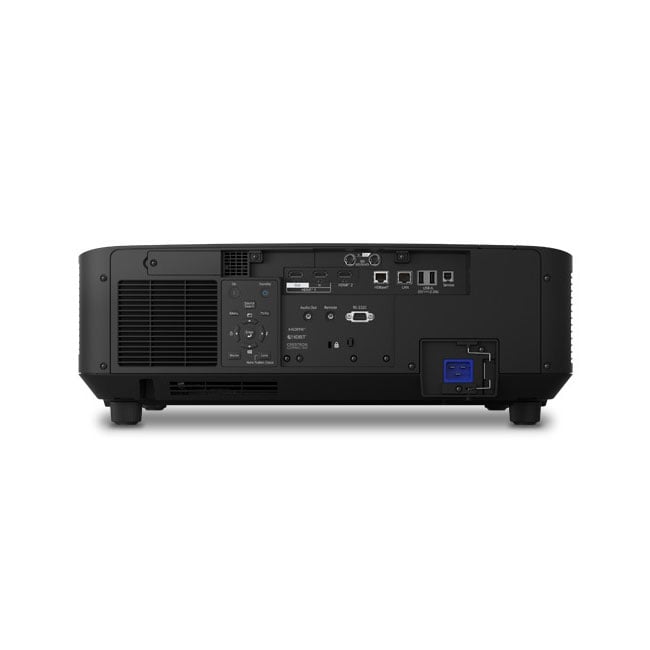

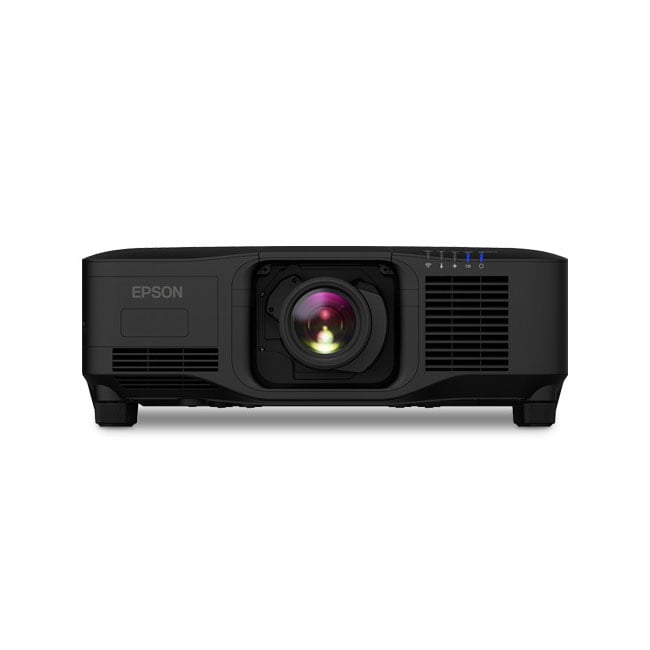

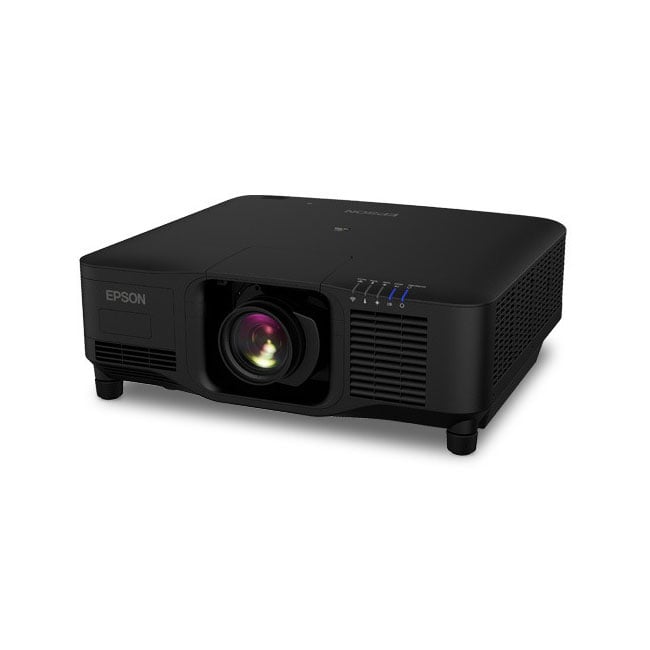

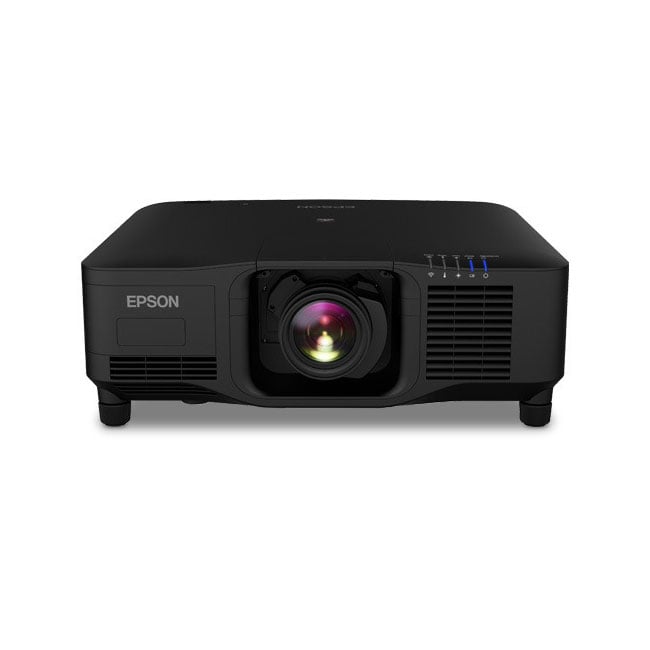

Epson EB-PQ2220B 4K 3LCD Laser Projector in Black - V11HB05820

Product Details
Epson V11HB05820 EB-PQ2220B 4K 3LCD Laser Projector in Black
The Pinnacle of Projection: Epson EB-PQ2220B 20,000-Lumen 4K 3LCD Laser Projector
Redefine what's possible for large venue presentations and events with the Epson EB-PQ2220B 20,000-Lumen 4K 3LCD Laser Projector. As the world’s smallest and lightest 20,000-lumen 4K projector, this model delivers breathtaking imagery with immense detail and vibrant colors, even in environments with challenging lighting. Designed to meet the strict demands of permanent installations and live productions, this industry-leading projector ensures flawless results from the very first frame.
Advanced 4K Image Quality for Immersive Visuals
Equipped with Epson’s innovative 4K Crystal Motion technology, a thermo-control panel, and double micro-lens array, the EB-PQ2220B transforms every presentation into a captivating visual experience. Enjoy outstanding 4K resolution, enhanced by high native contrast and advanced 3LCD chip technology. The result is a display with true-to-life depth, realistic color, deep blacks, and exceptional clarity—perfect for everything from conference halls to immersive digital exhibits.
Reliability That Lasts
With a virtually maintenance-free 20,000-hour laser light source and a filterless, sealed design (IP5X-rated), the EB-PQ2220B is engineered to perform without interruption. This durability makes it ideal for both permanent installations and high-intensity live events, ensuring your audience enjoys flawless projections event after event. Additional features such as HDR support, scene adaptive gamma correction, and precise frame interpolation further guarantee accurate, lifelike images under all conditions.
Features
The world's smallest and lightest 20,000-lumen 4K projector1
produces incredibly bright images with a light, compact and energy efficient design
Incredible color
Epson® 3-chip 3LCD technology produces 20,000 lumens of equal white and color brightness5
4K resolution on-screen
leverages Epson’s 4K Crystal Motion technology, thermo-controlled panel and double micro-lens array for crystal clear image quality that fully realizes 4K resolution (3840 x 2160)
Robust, high-reliability design
virtually maintenance-free 20,000-hour laser light source2; IP5X-rated hermetically sealed optical and light source module for high dust resistance; filterless cabinet; optimized liquid cooling system
Stunning image quality
high native contrast ratio for deep blacks; 50 percent improvement over the already high contrast ratio found with the current Epson EB-PU Series; frame interpolation for fast moving objects; HDR support3 and scene adaptive gamma correction
Simplified installation
9 optional powered lenses (sold separately) including ultra short throw .35 throw lens with a unique zero offset design for installation flexibility; projector compatible with existing Epson lens family
Enhanced connectivity
HDMI® two in and one out; 12G-SDI in/out for daisy chaining and signal monitoring; features automatic input switching when input signal is disrupted
Versatile power source options
Requires 220 V power for full brightness; can operate at 16,000 lumens from a standard 120 V power source for setup and installation
Low latency performance and high frame rate support
High-speed graphics chip and panel drive technology enable high frame rate 4K playback
Optional attachable PixAlign external camera
Access powerful automated tools including edge blending assist6, stacking assist function6, auto color calibration7 and screen matching7 with or without a connected PC and router
Efficient setup and management
Control multiple projectors in a single, large space with Epson Projector Professional Tool (EPPT app)8; easily manage your installed inventory using Epson Projector Management – Connected (EPM-C)9 from any device with a Web browser
NFC function built-in4
Reduce installation time of multiple projectors; read and write setting information using Epson’s mobile app
Footnotes
1 Comparison based on 4K projectors rated at 20,000 lumens. Lumens, resolution, size and weight based on the manufacturers' online specifications and industry-available data as of October 2023.
2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
3 HDR performance available with select third-party devices. For more information, see
4 NFC requires use of a device that includes NFC and may require additional software.
5 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
6 Requires Epson external camera for each projector and may require Epson Projector Professional Tool app.
7 Using separate camera for each projector.
8 Mac® and PC only.
9 Requires one on-site PC with Epson Projector Connected Agent installed.
10 For convenient and reasonable recycling options, visit
11 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
Read More
California customers
Proposition 65 WARNING
WARNING: Cancer and Reproductive Harm

Specifications
General
Color
Black
Type
Projector
Display Technology
3LCD
Resolution
4K
Pixel Resolution
4096 x 2160
Dynamic Contrast Ratio
5,000,000:1
Aspect Ratio
4:3, 16:10, 16:9, 21:9
Laser Life (hours)
20000 Hrs
Brightness (Lumens)
20000
Uniformity
85%
Vertical Lens Shift
+/-60%
Light Source Type
Laser Diode
Horizontal Lens Shift
+/-18%
Throw Ratio
1.52 - 2.47
Vertical Keystone Correction
+/-45 degrees
Projection Method
Front, Rear, Ceiling Mount
Projection Lens
F-Number 2.0 - 2.1
Zoom
1 - 1.6x
Zoom Type
Optical
3D
No
Focal Length (mm)
14.8 mm - 17.7 mm
Number of HDMI Inputs
2
Wireless Ready
Yes
Input(s)
12G-SDI In/Out, 2 x HDMI (HDCP 2.3), 1 x HDBaseT, 1 x USB Type-B, 2 x USB Type-A (5 V, 2.0 A), USB Type-A for Wireless LAN (optional), Serial: RS-232c x 1 (9-pin), Remote Stereo Mini, Network: RJ-45
Output(s)
1 x HDMI Out, 1 x Variable Audio Out: Mini Stereo
Security
Security cable hole, lens lock, Kensington lock provision, wireless LAN unit lock
Composite Video
No
Operating Temperature
32 ˚F to 113 ˚F (0 ˚C to 45 ˚C)
Remote Control
Yes
In the Box
EB-PQ2220B Projector, Two Cables (1 x 200 V – 240 V Power Cable, 1 x 100 V – 120 V Power Cable), Remote Control With 2 Batteries, Cable Cover, Quick Reference Guide, Warranty Sheet
Projection Technology
High-aperture Epson 3-chip 3LCD technology
Maximum Projected Screen Size (in)
500
Power Consumption (Standby)
2.0W
Power Consumption (Min)
0.5W
Power Consumption (Max)
1,431W
Noise Level
31 dB (Normal Mode); max. 23 dB (ECO Mode)
HDR Compatible
Yes
Mounting Options
Front, Rear, Ceiling
Warranty Information
Labor Warranty
3 Years Limited
Parts Warranty
3 Years Limited
Approximate Weight
Unit Weight (lbs.)
64.3
Approximate Dimensions
Height (in)
7.3
Width (in)
23.1
Depth (in)
19.4
